Specification
Main Telescope:
Length: 14″ (with 190 micrometer)
Magnification: 20X at 2″ from objective; 30X at infinity
Field of view: 1 degree
Image: Erect
Optics: Low reflective, protective coating
Effective aperture: 1.34″
Reticle: Glass, filar/bi-filar pattern (others available)
Focusing range: 2″ to infinity
Cross-Axis Telescope:
Length: 11″
Magnification: 45X
Field of view: 1 degree
Image: Erect
Optics: Low reflective, protective coating
Effective aperture: 1.25″
Reticle: Glass, filar/bi-filar pattern (others available)
Focusing range: Focus is fixed at infinity
Bearings: Ball type with a runout of 0.000025″ or less
Finish: Two part gray polyurethane enamel (textured)
Approx. weight:
Instrument, 34 lbs. (15.4 kg);
Instrument and case, 54 lbs. (24.5 kg);
Shipping, 56 lbs. (25.4 kg)
Features

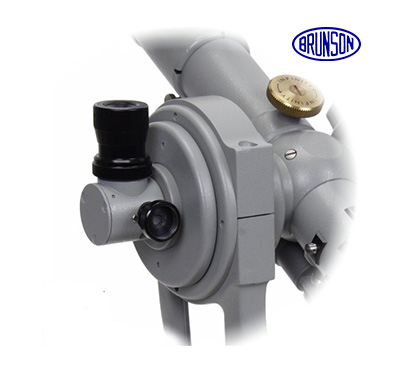

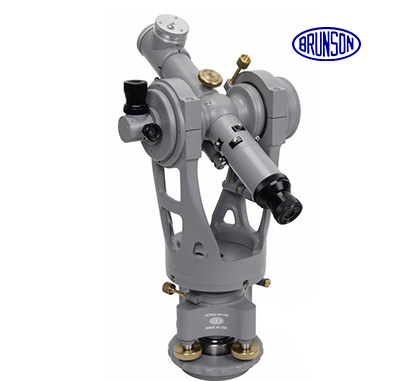

The versatile Brunson 76-RH190 transit combines the traditional main telescope with a fixed-focus cross telescope mounted in the horizontal axis of the instrument. This second telescope is fixed at infinity focus to make collimation or autocollimation with another instrument or a mirror quick and easy. This capability means that the 76-RH190 can be quickly made perpendicular to an optical reference line. By simply shifting from the main eyepiece to the cross-axis eyepiece, an operator can establish or verify his/her position relative to the basic reference line in seconds. This effectively requires only one technician, where previously two were required.
Patented ball bearing mounts permit accurate sweeping of both horizontal and vertical planes. The 76-RH190 employs a 194-TM coincidence level for precision leveling. The 194-TM has a 360-degree rotating turret to view the magnified bubble image from any position.
Available with English, metric, or no micrometer. Measurements from the optical reference line are taken by using an optical micrometer mounted on the main telescope. The 76-RH190 comes standard with a model 190 optical micrometer. To order the transit with a metric micrometer, specify 76-RH190M. In event that you do not want either micrometer, order model number 76-RH.
The 76-RH190 and 76-RH190M also come with a model 509 light source, a carrying case, set of adjusting pins, instruction booklet, and plastic cover.
The 76-RH190 is classified as National Stock Number (NSN) 6675-01-052-7029.
For additional general information about this instrument, read about our transits.
